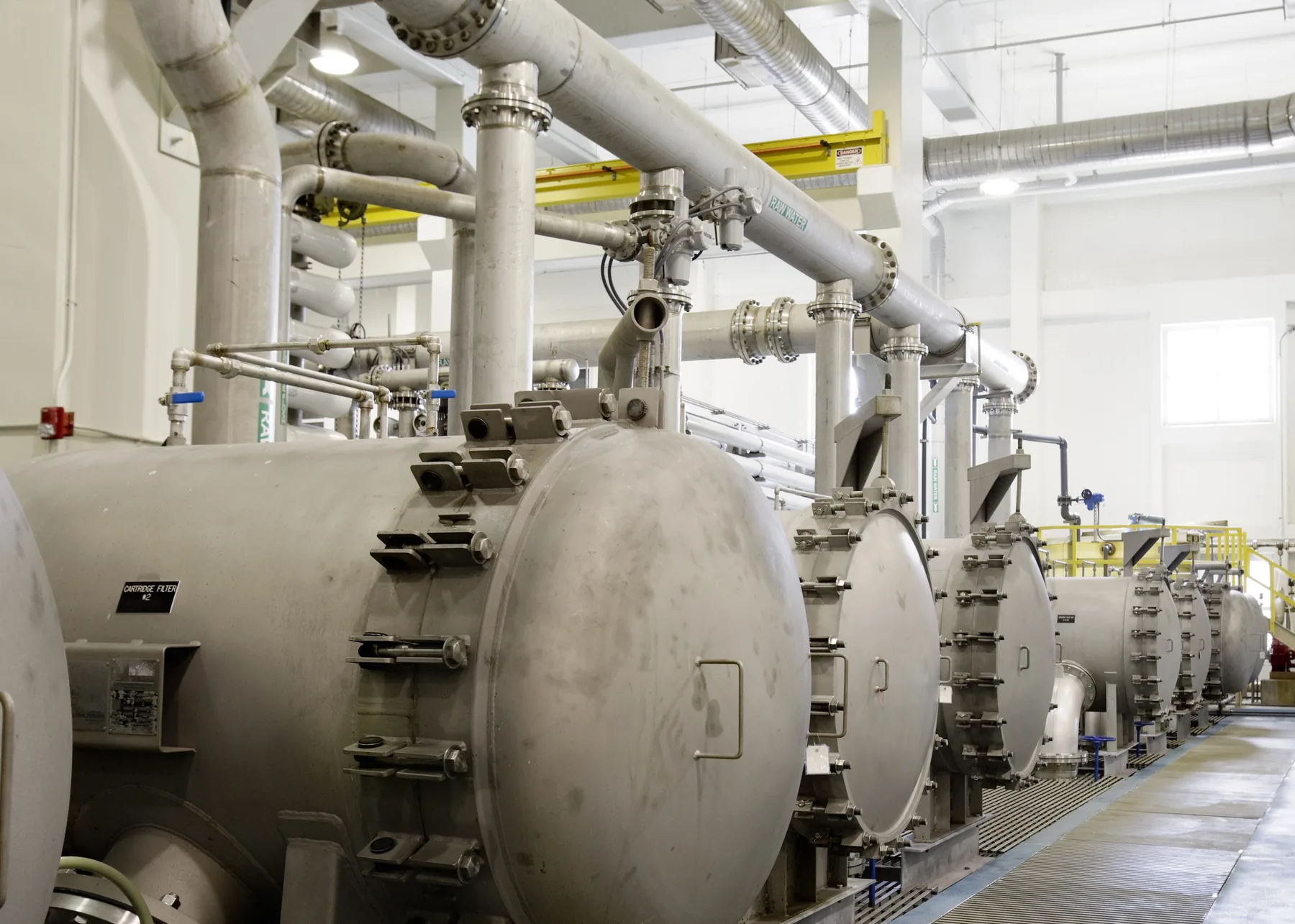

Straining where hydraulic headroom or pumping energy is the governing constraint, not the filtration rating.
Every strainer imposes a pressure loss. Part of it comes from the body geometry — the change in flow direction and area through the shell — and part from the screen itself, which presents a restricted open area to the flow. The two together are the clean pressure drop.
That figure is only the starting condition. As the screen loads with debris the effective open area falls and the pressure drop rises. Any system with limited hydraulic headroom has to be designed against the fouled condition at which the strainer will be cleaned, not against the clean figure quoted for a new screen.
Pressure drop consumed by the strainer is no longer available to the process. In gravity, low-head and suction-side systems that margin is often already tight before the strainer is added.
Where a pump makes up the loss, the pressure drop is a continuous energy cost for the life of the installation — not a one-off capital consideration.
A small screen area reaches its allowable pressure drop sooner for the same dirt load, which means more frequent cleaning and more interruption.
The main lever is the ratio of screen open area to pipe bore. Increasing open area — through a larger screen surface, a basket rather than a Y screen, a coarser perforation where the duty allows, or a pleated or wedge-wire element — lowers velocity through the screen and lowers pressure drop for the same flow and filtration rating.
Body geometry matters too. A configuration that turns the flow less sharply and presents a larger internal flow area contributes less loss than a compact body pushed to the top of its flow range. Where allowable pressure drop is very tight, the strainer may be sized above line size with reducers, which is an engineering decision to be taken deliberately rather than by default.
Six governing inputs, one evaluation, four engineered outputs. Here the allowable pressure drop is fixed first, and the screen and body are then sized to fit inside it.
Pressure drop is evaluated at the fouled condition at which the strainer will be cleaned, not only at the clean-screen condition.
| Requirement | Possible Solution |
|---|---|
| Largest screen area for a given line size | Basket Strainer |
| Low loss in a compact, space-constrained run | Tee Strainer |
| Higher open area at the same filtration rating | Pleated or wedge-wire element |
| Pressure drop held stable in continuous duty | Automatic Strainer |
A coarser filtration rating always reduces pressure drop, but only the equipment being protected can justify it. Where the rating cannot be relaxed, open area and body configuration are the levers that remain.
Pressure drop cannot be assessed without flow, fluid properties and the allowable figure. Send these and we can work to your hydraulic limit.
Screen and element construction has a direct effect on open area — perforated plate, mesh, pleated and wedge-wire elements all present different open area for the same nominal rating. Body and element materials are selected for the fluid and service conditions, in carbon steel, stainless steel, duplex, super duplex or nickel alloys as the application requires.
Fit pressure tappings or a differential pressure gauge across the strainer so the fouled condition is measured rather than estimated. Cleaning triggered by a differential pressure set point uses the full dirt-holding capacity of the screen while protecting the hydraulic design limit.
Two contributions: the body geometry, which changes the direction and area of flow through the shell, and the screen, which presents a restricted open area. Both scale with flow velocity, so pressure drop rises steeply as flow increases.
For the same screen area, yes — a finer perforation or mesh reduces open area and raises velocity through the screen. The increase can be offset by increasing the screen surface area, which is why basket and pleated elements can hold a fine rating at a lower pressure drop than a small Y screen.
To the fouled condition — specifically the pressure drop at which you intend to clean the strainer. The clean figure is the starting point, not the design case.
Yes, with reducers, where the allowable pressure drop cannot be met at line size. It increases cost and space, so it should be a deliberate engineering decision made against a stated hydraulic limit.
Flow rate, line size, fluid density and viscosity, operating temperature, required filtration rating and the allowable pressure drop. Without fluid properties and flow, any pressure drop figure is meaningless.
Send flow rate, line size, fluid density and viscosity, temperature, required filtration rating and your allowable pressure drop — we will size the screen and body to fit inside it.
